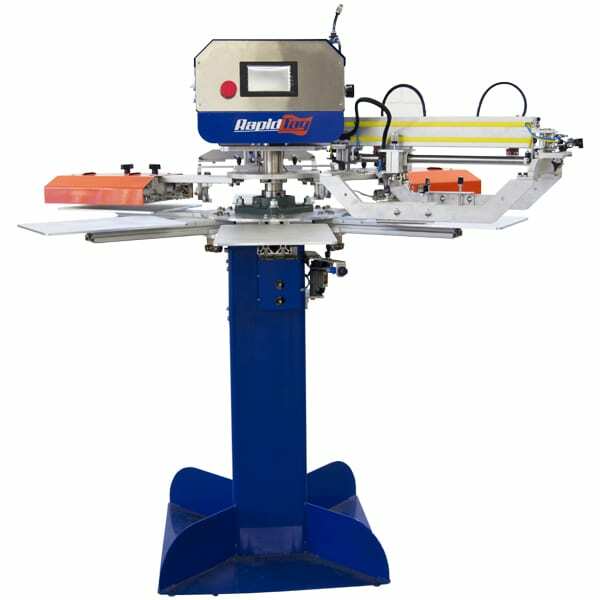

ASPE Rapid Tag LP2XL 2 Colour XL

Description

Description

The LP2XL was originally designed for screen printing on promotional tote bags. It offers the lowest cost per print along with the highest through put.

FEATURES.

• Parts Sensor (no product no print)
• 20 x 14” maximum screen size
• Servo Indexer
• Adjustable Stroke and flood speed
• Squeegee Angle Adjustment
• Stroke Length adjustment
• Parts Counter
• High Density Flash Cure Units
• Machine can be customized for different application
• Dwell set up
• Index Speed Set up
• Curing Time Set up
• Touch Screen

SPECIFIACTIONS.

• 6x Stations
• 2x Print Heads
• 2x High Density Flash Cure Units
• Max Image Area 10” x 10 ” inch (25.4cm x 25.4cm)
• Standard Pallet Size 10” Wide x 12 ” Long (25.4 cm x 30.48 cm)
• Standard Frame Size 14” x 20” (22 cm x 35.5 cm)

DIMENSIONS.

• Machine is 46″ in diameter about 55″ tall
• Standard Pallet Size 10” wide x 10” long)
• Standard Flash Cure Size 10” Inch wide
• Max Image Area 10” x 10” inches

REQUIREMENTS.

• Power
• Single Phase
• Air
• Clean dry air
• 90-110 psi
• 98 cfm

More Information.

If you have any questions please feel free to get in touch by phone on 0044 (0)1562 829 009, Email or on our Webchat.
