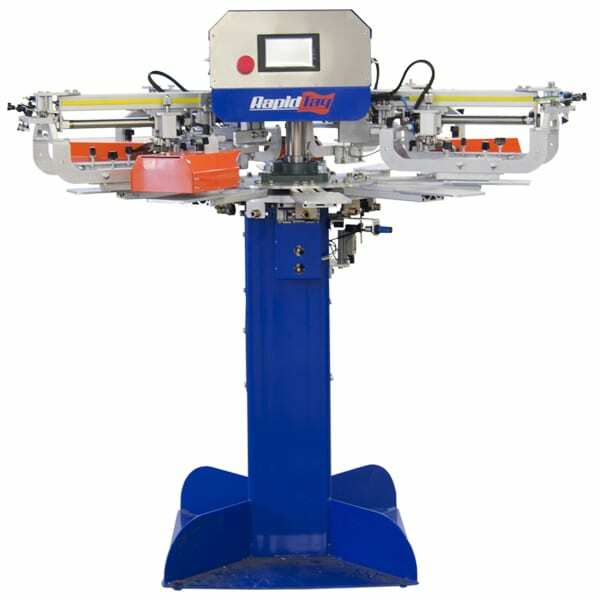

Allowing printing for four colour images, the LP4 is our most powerful model. Most popularly used for napkin printing, it’s also perfect for sleeve prints and any design that needs an little extra.
FEATURES.
- Parts Sensor (no product no print)
- 9 x 14” maximum screen size (able to put 3 images on one screen: example S, M, L)
- Servo Indexer
- Adjustable Stroke and flood speed
- Squeegee Angle Adjustment
- Stroke Length adjustment
- Parts Counter
- High Density Flash Cure Units
- Machine can be customized for different application
- Dwell set up
- Index Speed Set up
- Curing Time Set up
- Touch Screen
SPECIFICATIONS.
- 10x Stations
- 4x Print Heads
- 4x High Density Flash Cure Units
- Max Image Area 6” x 6 ” inch (15cm x 15cm)
- Standard Pallet Size 4” Wide x 8 ” Long (10 cm x 20 cm)
- Standard Frame Size 9” x 14” (22 cm x 35.5 cm)
DIMENSIONS.
- Machine is 46″ in diameter about 55″ tall
- Standard Pallet Size 4 ” wide x 8 ” long)
- Standard Flash Cure Size 6” Inch wide
- Max Image Area 6” x 6 ” inch
REQUIREMNTS.
- Power
- Single Phase
- Air
- Clean dry air
- 90-110 psi
- 98 cfm
More Information.
If you have any questions please feel free to get in touch by phone on 0044 (0)1562 829 009, Email or on our Webchat.
